▸ Disk Identity

Image Size360 KB
FilesystemFAT12 (assumed — non-standard BPB)
Floppy Type360KB
Form Factor5.25"
Format NotesIBM DOS 2.0 DS/DD
Cylinders40
Heads2
Sectors/Track9
Total Sectors720

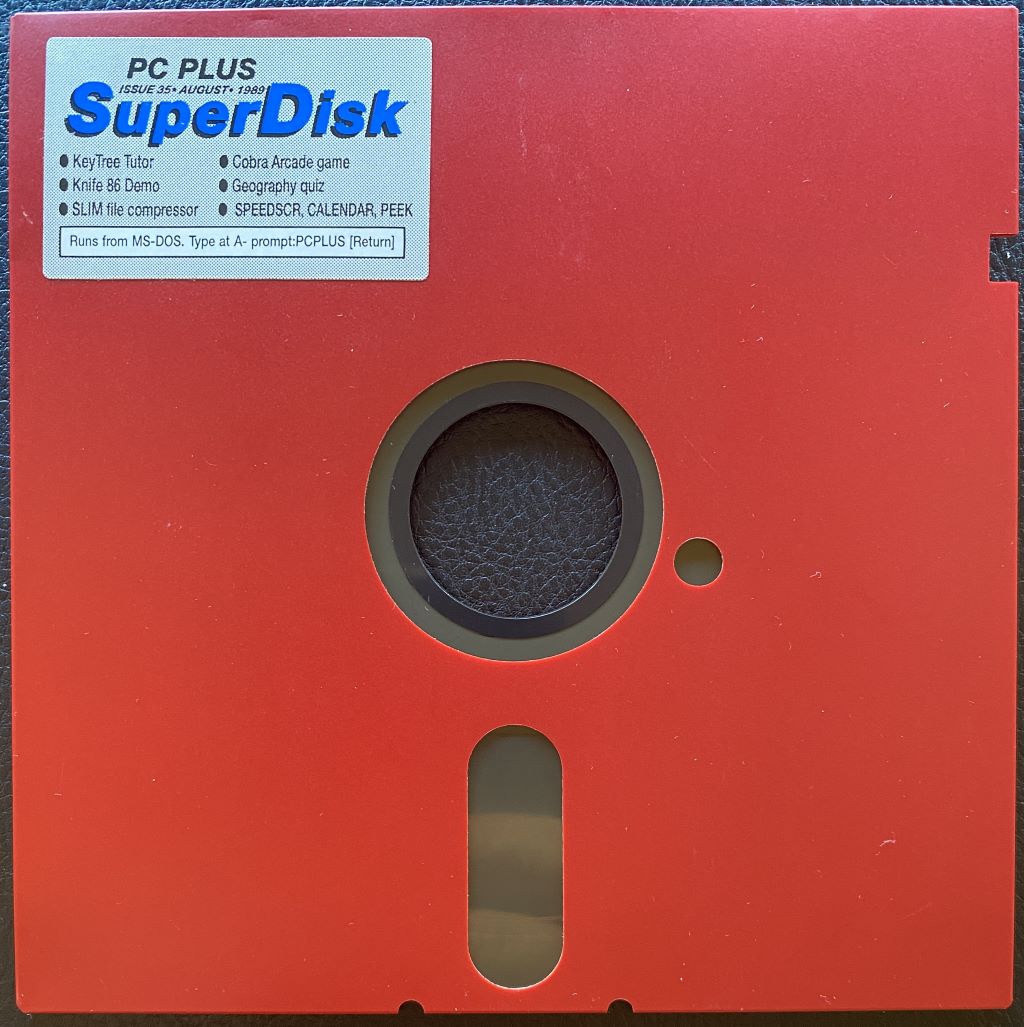

Physical disk scan — PCPlus_Issue-35_Aug-1989
Physical media scan

▸ Contents Summary

41FILES
8DIRECTORIES
322.5 KBTOTAL DATA
Used capacity89.6%
Slack space10.4% (37.5 KB)
Date range1986-12-29 → 1989-06-05
Largest fileTUTOR.EXE (63.4 KB)
Cross-disk dupes1 file(s)
AV status⚠ 1 THREAT(S)
Disk SHA-256:ef0e6c2cceb3e5d8b3049f4b15f8b0c6cd36d74ca099db19a3a9783f6962d098

▸ Archivist's Notes

DEVICE: GreaseWeazle 4.1
   DRIVE: TEAC FD-55GFR

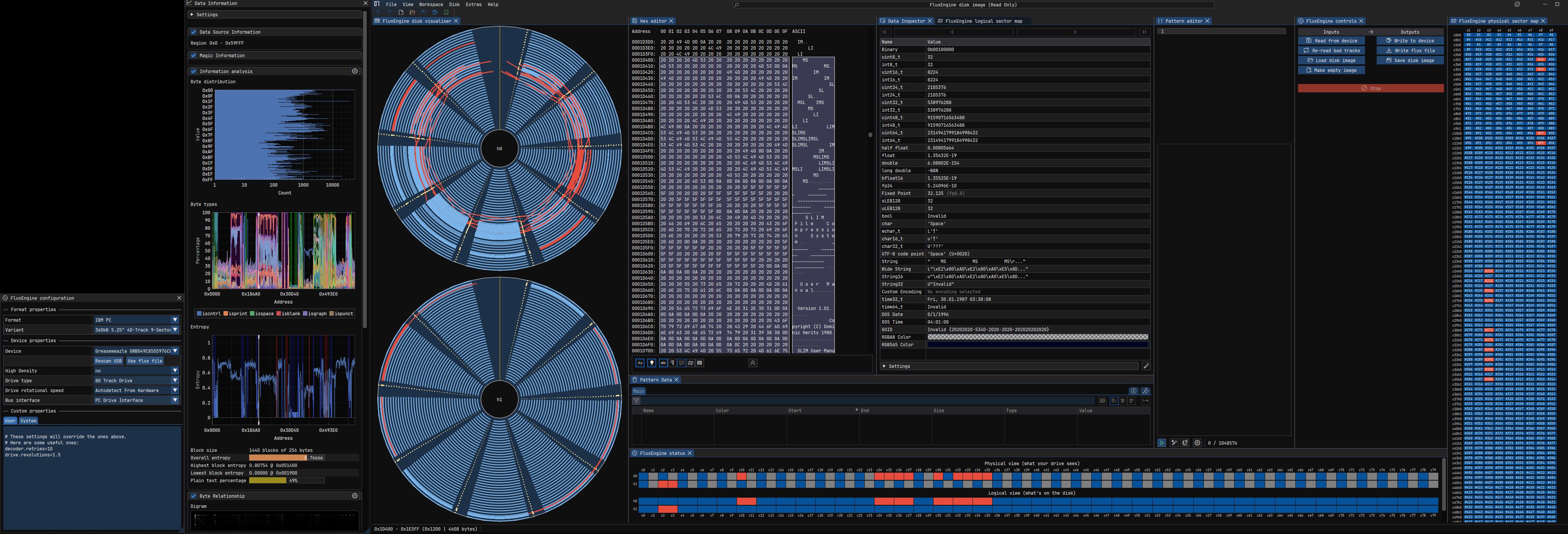

   SUITE: FluxEngine (decoder.retries=varied_see_log, drive.revolutions=varied_see_log)
ARCHIVER: Lee Smallbone
ARCHIVED: 2026-04-27 1000 (GMT/UTC)

NOTES:

This disk was originally attempted 11/03/2026 at 1340 UTC.

The disk itself was in very poor condition with obvious mould colonies on the disk. The disk was removed from its jacket and cleaned in a mild solution of a dishwashing soap and warm water with medical non-adherent swabs to remove all mould. The disk was then placed into a clean donor sleeve for a read attempt.

From the first cylinder it began oxide shedding onto the read heads with the tell-tale scraping and squealing from the drive. The read was aborted and the drive thoroughly cleaned, and then the disk examined further. As time was low this day, the disk was returned to its original jacket and noted for further time to be spent on it when time allowed.

-----------------------------------------------------------------------------------------------------

27/04/2026 1000 UTC.

Disk removed from retry box and examined. Mould not in evidence so no active sporing. Disk removed from original sleave having been left in a warm position for the last 6 weeks to aid flexibility of the oxide coating, mylar disk and all adherents for the media. Disk cleaned again very gently with mild wiping to remove any loose oxides, placed in a clean donor sleave, and FluxEngine set for single fast-pass (1.5 revolutions, 1 decoder retry).

10 sectors of 720 failed to read. Crucially the boot sector is still good.

A re-pass at 1.2 and 6 retries resulted in a further 3 sectors read.

End read was 99.02% successful (7 meaninfully unreadable from 720).

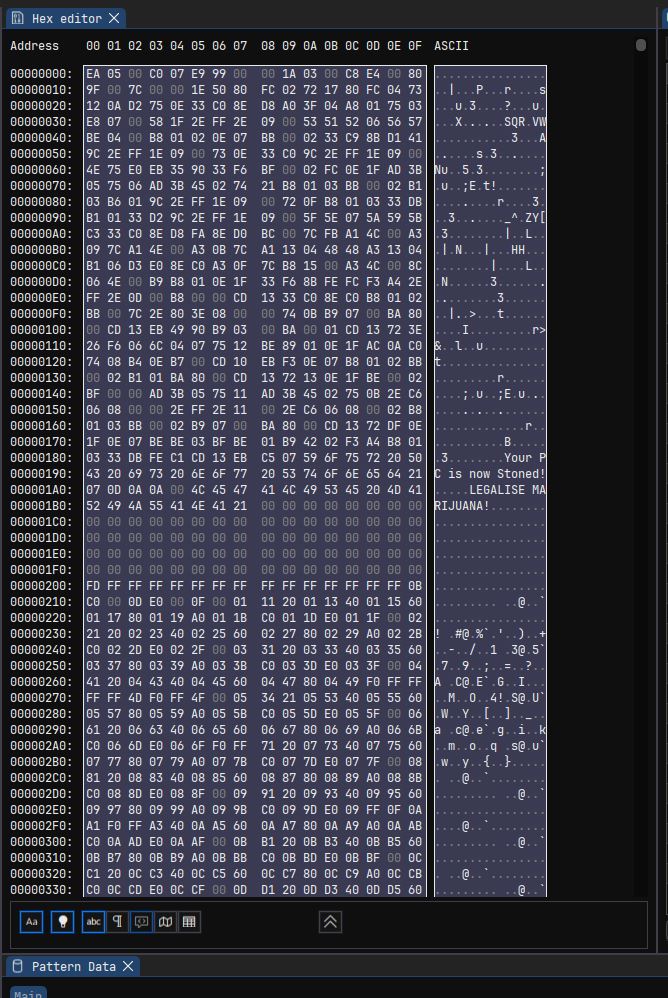

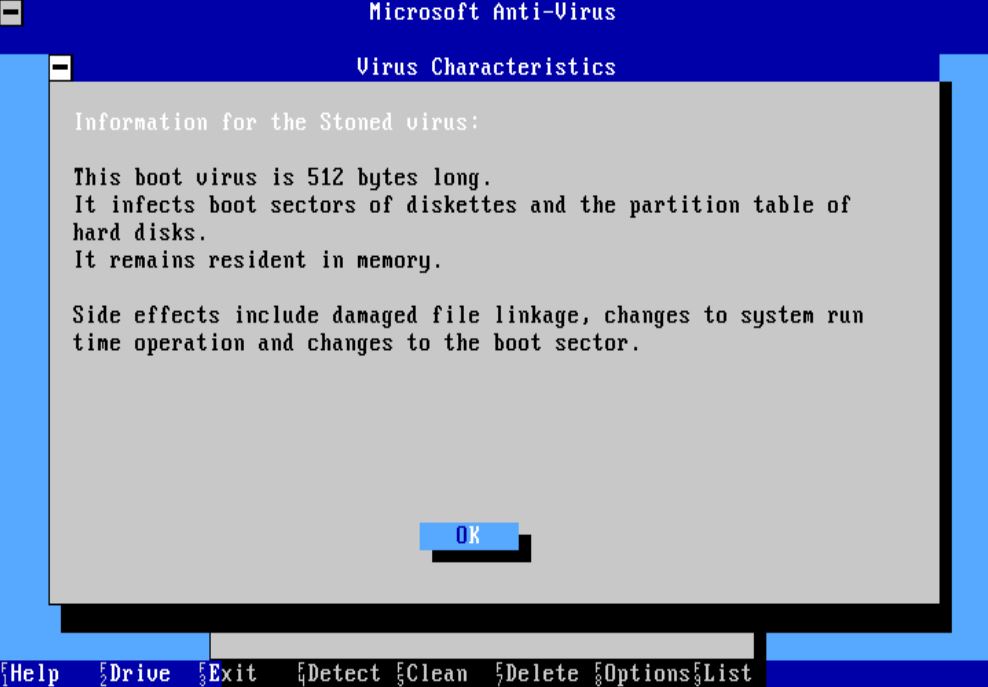

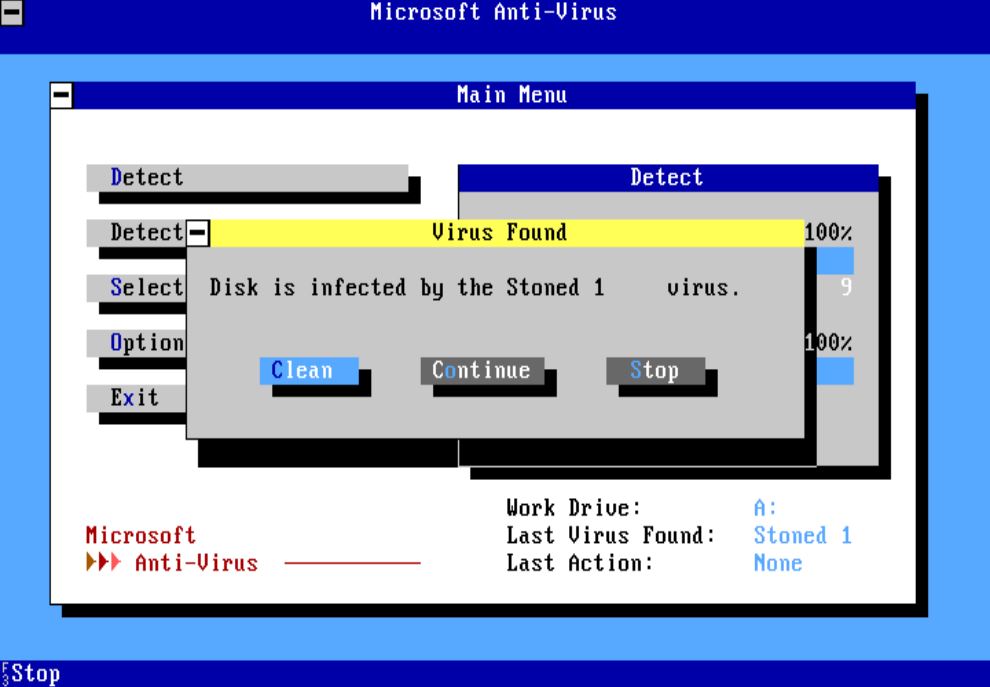

Disk noted as being STONED! From Wikipedia:

"Stoned is a boot sector computer virus created in 1987. It is one of the first viruses and is thought to have been written by a student in Wellington, New Zealand. By 1989 it had spread widely in New Zealand and Australia, and variants became very common worldwide in the early 1990s. A computer infected with the original version had a one in eight probability that the screen would declare: "Your PC is now Stoned!", a phrase found in infected boot sectors of infected floppy disks and master boot records of infected hard disks, along with the phrase "Legalise Marijuana". Later variants produced a range of other messages."

https://en.wikipedia.org/wiki/Stoned_(computer_virus)

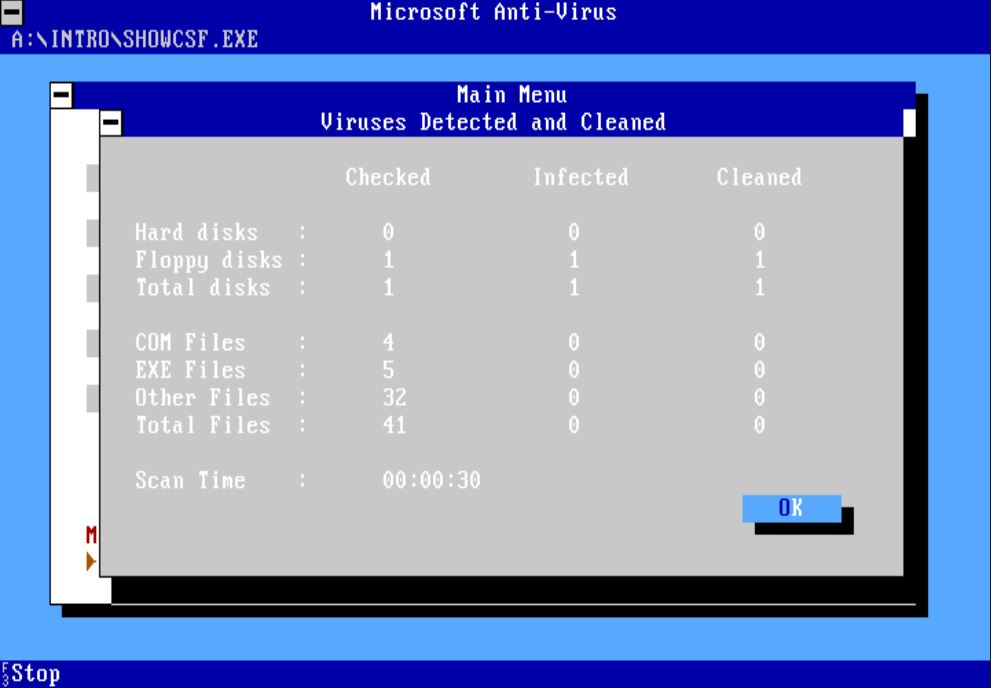

A clean version of the disk will be provided into the archive, as well as the original virus-infected version.


Disk returned to original sleave for archiving.

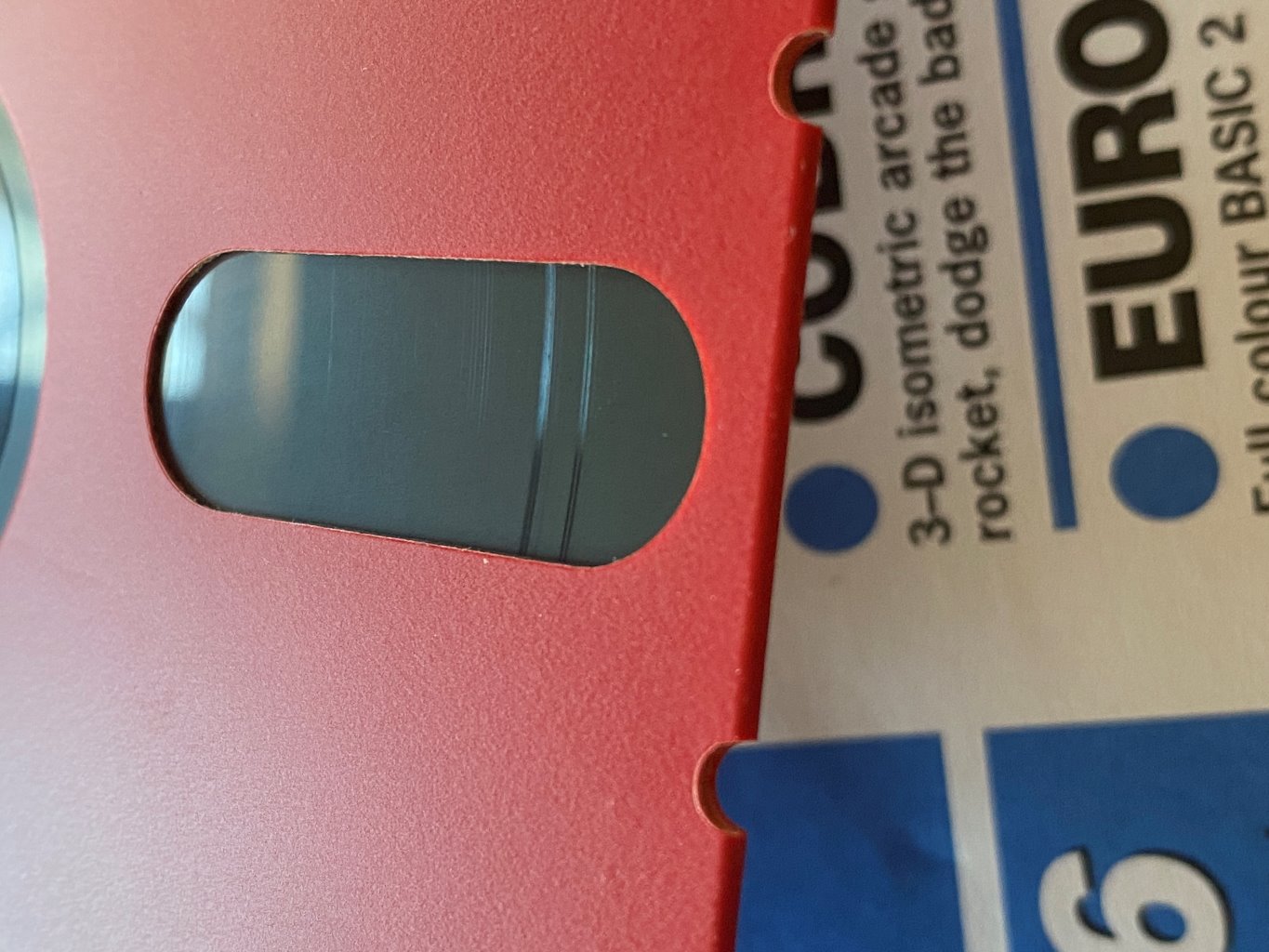

Despite the magnetic media being scoured off the disk in two very visble cylinders, no actual data was damaged:


----------------------------------------------------------------------------------------------------

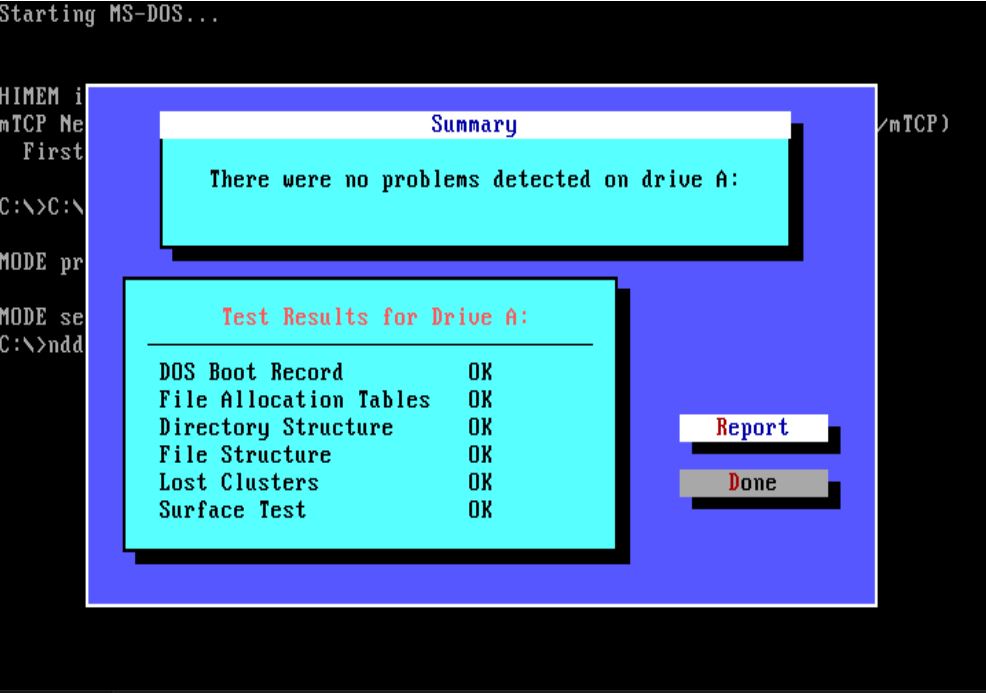

                          Norton Disk Doctor
                         Norton Utilities 8.0
                          27 April 2026 14:52

                       *************************
                       *  Report for Drive A:  *
                       *************************

                              DISK TOTALS
                -----------------------------------------
                    362,496 bytes Total Disk Space
                    353,280 bytes in 41 User Files
                      8,192 bytes in 8 Directories
                      1,024 bytes Available on the Disk


                       LOGICAL DISK INFORMATION
                -----------------------------------------
                   Media Descriptor:  FD
                    Large Partition:  No
                           FAT Type:  12-bit
                      Total Sectors:  720
                     Total Clusters:  354
                   Bytes Per Sector:  512
                Sectors Per Cluster:  2
                  Bytes Per Cluster:  1,024
                     Number of FATs:  2
                First Sector of FAT:  1
          Number of Sectors Per FAT:  2
           First Sector of Root Dir:  5
      Number of Sectors in Root Dir:  7
      Maximum Root Dir File Entries:  112
          First Sector of Data Area:  12


                       PHYSICAL DISK INFORMATION
                -----------------------------------------
                       Drive Number:  0
                              Heads:  2
                          Cylinders:  40
                  Sectors Per Track:  9
                      Starting Head:  0
                  Starting Cylinder:  0
                    Starting Sector:  1
                        Ending Head:  1
                    Ending Cylinder:  39
                      Ending Sector:  9


                          SYSTEM AREA STATUS
                -----------------------------------------
                     No errors in the system area


                         FILE STRUCTURE STATUS
                -----------------------------------------
                    No errors in the file structure


                          SURFACE TEST STATUS
                -----------------------------------------
                             Test Settings
                        -----------------------
                               Test:  Entire Disk Area
                          Test Type:  Thorough Test
                     Repair Setting:  Prompt before Repairing
                   Passes Requested:  1
                   Passes Completed:  1
                       Elapsed Time:  2 seconds

                 No errors encountered in Surface Test




----------------------------------------------------------------------------------------------------

A patched copy of the virus-cleaned image is available with the BPB corrected so that the image can be mounted in mTCP NetDrive and other such tooling as the Stoned virus had broken it.

▸ Directory Tree

┌─ PCPLUS_ISSUE-35_AUG-1989.IMG
│
├── KEYTREE\
│   ├── TUTOR.EXE                 63.4 KB  1989-02-20  sha256:f15825ebe0d87a510e09ecbfbdb6dfb197ad8e9f7f122f8f31993acf4d83587b
│   ├── NAMES.FIL                   445 B  1989-02-14  sha256:3b584c3e5450a6cc8c5ec4b02df15a9f4efffb27d0ca75b52ba7d9acf5c096d3
│   ├── NAMES.IX0                   634 B  1989-02-14  sha256:365a6c9f5122ae9b554eba21cd84bef954bbc2dd8b6780c1e1152f0eb9472d40
│   └── NAMES.IX1                  1.7 KB  1989-02-14  sha256:6227addd7a367fbe2a25fd61614e7e356cab953b20c777e0e043d3ba48c01062
├── KNIFE86\
│   ├── KNIFE86.EXE               34.7 KB  1989-05-30  sha256:5ea90da37b9f53c8c90761eff6ca2071de9ffa1ca38d2ce5694bc872865f8141
│   └── KNIFE86.DOC                1019 B  1989-05-31  sha256:5e99237d4926328730bba313ba1452816046c47a62f44d7678fa19cac3f0cd02
├── UTILS\
│   ├── SLIM.EXE                  30.3 KB  1989-04-01  sha256:301755e24ef7a76ae1ca9a5b1c102dcb0d905e5b8c83a286637fd2c05f321b27
│   ├── SLIM.DOC                  46.1 KB  1989-06-03  sha256:8d09a2e25ea24faa02a74db0d3c9ff5378430155b27ec02a4f6b85a0d16c9787
│   └── SLIMDEMO.BAT               2.6 KB  1989-06-05  sha256:385abab4f577a8ac4fcbbd33bfca723a7d87829a39277300cefb8e81fa4ad099
├── GAMES\
│   ├── COBRA.EXE                 55.7 KB  1988-06-16  sha256:2ca8279ad9820420bab08a9e2c4a28596ea78ea47b1ab41b459572885af18809
│   ├── COBRA.DOC                    3 KB  1988-11-11  sha256:b0f990b3c8a3a359f342794c93ac12642d84281134bb9e56b6d563cfad0e312c
│   ├── CHRSET.DTA                 1.5 KB  1988-05-24  sha256:14d477ce83b4510ae79002509c6267fd09124f5432d95a1f43a6bb0f7ae60173
│   ├── GAME.RMD                   3.4 KB  1986-12-29  sha256:800d4f5d6141cf2cb8832becd501a0acbbf9c8838fee804571ed0fb4df582587
│   ├── GAME.GRA                  22.6 KB  1986-12-29  sha256:bc5db886459c81fe1d276854597d69f0a19744d15566b2d50c27504f8c15fc3c
│   └── GAME.TXT                    128 B  1986-12-29  sha256:715097574f4a62ec0cac0a9ac9a9c4d601e763f65e80a8e8fe330a6da12a0099
├── BASIC2\
│   └── EUROQUIZ.BAS              16.2 KB  1989-06-01  sha256:64044cf30cb94549374a9f1ec9e1bc9c8eab5bf3ac1886a5ff6d7e60b19ba129
├── SHORTIES\
│   ├── CALENDAR.COM                739 B  1988-11-08  sha256:cfd4ee7d29200bc9caf7e8039962a4b91eee6afd70ef0294e5b5bf486058e56d
│   ├── PEEK.COM                    960 B  1989-03-16  sha256:8f90a3eda808f5fccafb1d01681a8c72640331d6f2afc521dc76785f1d343a5b
│   ├── PEEK.DOC                    952 B  1989-03-16  sha256:d05f75ff3ebd7da39fb5bf301bb0a428bc47932cffd2533c9b7fee27d9ede71b
│   ├── SPEEDSCR.COM               1.1 KB  1989-05-07  sha256:c24d63a05a27b5f2a63549dbea847178d601883f0d6a252370cd5aaa3fd624f6
│   └── SCRNTEST.COM                383 B  1989-05-02  sha256:84e36615238f31530acf6c23af30c53b2305f6c28adfd808d3acd49b4206b76b
├── LISTINGS\
│   ├── CO.HDR                     1.7 KB  1989-05-14  sha256:d6de94c966c8dce26153d1bfadb6457d8ab2e3c14c502394b8f237f8fdfa3a8a
│   ├── CO.INX                      182 B  1989-05-14  sha256:13c42de5669a8f43eeff54f90b74f06b134260453626cf84e5c5400d46f2fc9b
│   ├── CO.DTA                      462 B  1989-05-14  sha256:70bb754df1dfe20e4f751ad98a7e4f08ca73b3758fc598aab53ca3bfa476e9ca
│   ├── PERSNL.DTA                  422 B  1989-05-14  sha256:738b46819cd9ffb24cda5a91c7ff0800d18c78c6da64c50b8daf489e9677327d
│   ├── PERSNL.HDR                 1.9 KB  1989-04-15  sha256:3a574fb2d0c25fa392e5cb396995a8cd936e57d8299c87b57145d312e153a3b3
│   ├── PERSNL.INX                   72 B  1989-05-14  sha256:92920d5b560a055abdc5e4054326a711752a642800b12cb8891b4a3ce5762678
│   ├── TO_DATE.DTA                 268 B  1989-05-14  sha256:86e2a99b129c934ecb0f862cb40142ae702df1f472fb57e9d6a77effac022970
│   ├── TO_DATE.HDR                2.2 KB  1989-04-15  sha256:e30c1e7e4aa3a8446c3d443d17ba88a0ef1f1e59d86367579c0117c64d00a87c
│   ├── TO_DATE.INX                  52 B  1989-05-14  sha256:9119b6fe91deacff0ef5e09dc838cd07106c11759020e6d028c42b9c9d0bc8a9
│   ├── TO_DATE.KEY                 330 B  1989-05-14  sha256:f904864592922f4fbb4387ec5a32c66fe3b5845dc83d3685b32faead7ce840b1
│   ├── WEEKLY.HDR                 3.6 KB  1989-05-14  sha256:1edd05a8f068d881d270aebf1a719fbcf3dbe56a688f58cf39852b103ab8e2af
│   ├── WEEKLY.INX                  152 B  1989-05-14  sha256:9a6fe0e1783d429a5953e8a2ea3bdd1b9be8eb362a0303b83581f30c36b4fe04
│   ├── WEEKLY.KEY                  332 B  1989-05-14  sha256:0cce9a689c77f7927505db7abd849489b679ede304efafdb11798a9432880964
│   ├── WEEKLY.DTA                  504 B  1989-05-14  sha256:be24d6629d8ceb5a4ee63a10552cac5799c212c83f4bcccf7c7c557ad7e72544
│   └── READ.ME                    6.1 KB  1989-05-14  sha256:03dfaac04853207411c37f13d13832e218f976a8ae5a8635033e6f4ebd978ec5
├── INTRO\
│   ├── TITLE.CSF                  1.6 KB  1989-06-03  sha256:391ceda7cb26bfbc066ff282161343d3a6fc491a6ec4b38f4d78659e92927da7
│   ├── AUG1.CSF                   1.6 KB  1989-06-03  sha256:9a3fcb81b97016aa73abc9822cd5e7a27df115da19c5d64f574fb132d0715449
│   ├── AUG2.CSF                   1.2 KB  1989-06-03  sha256:8f0896d967aa6480674cacee211739726af02abcab59eb6fbb06bfe5fd59068f
│   └── SHOWCSF.EXE                8.6 KB  1989-05-01  sha256:7429f059454b01feee6c0db0a75919f32e3093318854dba1f0d0295e54eb444f
└── PCPLUS.BAT                 3.7 KB  1989-06-05  sha256:706531a25fb5a8ab4caad2496511e95d838f1a88af35786bf39230b51e25bff4
│
└─ END PCPLUS_ISSUE-35_AUG-1989.IMG

▸ File Manifest

PathSize ModifiedSHA-256
KEYTREE\TUTOR.EXE 63.4 KB 1989-02-20 12:06 f15825ebe0d87a510e09ecbfbdb6dfb197ad8e9f7f122f8f31993acf4d83587b
KEYTREE\NAMES.FIL 445 B 1989-02-14 12:41 3b584c3e5450a6cc8c5ec4b02df15a9f4efffb27d0ca75b52ba7d9acf5c096d3
KEYTREE\NAMES.IX0 634 B 1989-02-14 12:38 365a6c9f5122ae9b554eba21cd84bef954bbc2dd8b6780c1e1152f0eb9472d40
KEYTREE\NAMES.IX1 1.7 KB 1989-02-14 12:39 6227addd7a367fbe2a25fd61614e7e356cab953b20c777e0e043d3ba48c01062
KNIFE86\KNIFE86.EXE 34.7 KB 1989-05-30 22:19 5ea90da37b9f53c8c90761eff6ca2071de9ffa1ca38d2ce5694bc872865f8141
KNIFE86\KNIFE86.DOC 📄 view 1019 B 1989-05-31 10:43 5e99237d4926328730bba313ba1452816046c47a62f44d7678fa19cac3f0cd02
UTILS\SLIM.EXE 30.3 KB 1989-04-01 00:15 301755e24ef7a76ae1ca9a5b1c102dcb0d905e5b8c83a286637fd2c05f321b27
UTILS\SLIM.DOC 📄 view 46.1 KB 1989-06-03 18:18 8d09a2e25ea24faa02a74db0d3c9ff5378430155b27ec02a4f6b85a0d16c9787
UTILS\SLIMDEMO.BAT 📄 view 2.6 KB 1989-06-05 18:44 385abab4f577a8ac4fcbbd33bfca723a7d87829a39277300cefb8e81fa4ad099
GAMES\COBRA.EXE 55.7 KB 1988-06-16 11:18 2ca8279ad9820420bab08a9e2c4a28596ea78ea47b1ab41b459572885af18809
GAMES\COBRA.DOC 📄 view 3 KB 1988-11-11 20:03 b0f990b3c8a3a359f342794c93ac12642d84281134bb9e56b6d563cfad0e312c
GAMES\CHRSET.DTA 1.5 KB 1988-05-24 15:28 14d477ce83b4510ae79002509c6267fd09124f5432d95a1f43a6bb0f7ae60173
GAMES\GAME.RMD 3.4 KB 1986-12-29 17:02 800d4f5d6141cf2cb8832becd501a0acbbf9c8838fee804571ed0fb4df582587
GAMES\GAME.GRA 22.6 KB 1986-12-29 17:02 bc5db886459c81fe1d276854597d69f0a19744d15566b2d50c27504f8c15fc3c
GAMES\GAME.TXT 128 B 1986-12-29 17:02 715097574f4a62ec0cac0a9ac9a9c4d601e763f65e80a8e8fe330a6da12a0099
BASIC2\EUROQUIZ.BAS 📄 view 16.2 KB 1989-06-01 17:57 64044cf30cb94549374a9f1ec9e1bc9c8eab5bf3ac1886a5ff6d7e60b19ba129
SHORTIES\CALENDAR.COM 739 B 1988-11-08 19:39 cfd4ee7d29200bc9caf7e8039962a4b91eee6afd70ef0294e5b5bf486058e56d
SHORTIES\PEEK.COM 960 B 1989-03-16 10:53 8f90a3eda808f5fccafb1d01681a8c72640331d6f2afc521dc76785f1d343a5b
SHORTIES\PEEK.DOC 📄 view 952 B 1989-03-16 11:08 d05f75ff3ebd7da39fb5bf301bb0a428bc47932cffd2533c9b7fee27d9ede71b
SHORTIES\SPEEDSCR.COM 1.1 KB 1989-05-07 22:08 c24d63a05a27b5f2a63549dbea847178d601883f0d6a252370cd5aaa3fd624f6
SHORTIES\SCRNTEST.COM 383 B 1989-05-02 04:39 84e36615238f31530acf6c23af30c53b2305f6c28adfd808d3acd49b4206b76b
LISTINGS\CO.HDR 📄 view 1.7 KB 1989-05-14 17:45 d6de94c966c8dce26153d1bfadb6457d8ab2e3c14c502394b8f237f8fdfa3a8a
LISTINGS\CO.INX 📄 view 182 B 1989-05-14 20:25 13c42de5669a8f43eeff54f90b74f06b134260453626cf84e5c5400d46f2fc9b
LISTINGS\CO.DTA 📄 view 462 B 1989-05-14 20:25 70bb754df1dfe20e4f751ad98a7e4f08ca73b3758fc598aab53ca3bfa476e9ca
LISTINGS\PERSNL.DTA 📄 view 422 B 1989-05-14 20:23 738b46819cd9ffb24cda5a91c7ff0800d18c78c6da64c50b8daf489e9677327d
LISTINGS\PERSNL.HDR 📄 view 1.9 KB 1989-04-15 15:14 3a574fb2d0c25fa392e5cb396995a8cd936e57d8299c87b57145d312e153a3b3
LISTINGS\PERSNL.INX 📄 view 72 B 1989-05-14 20:23 92920d5b560a055abdc5e4054326a711752a642800b12cb8891b4a3ce5762678
LISTINGS\TO_DATE.DTA 📄 view 268 B 1989-05-14 20:24 86e2a99b129c934ecb0f862cb40142ae702df1f472fb57e9d6a77effac022970
LISTINGS\TO_DATE.HDR 📄 view 2.2 KB 1989-04-15 15:14 e30c1e7e4aa3a8446c3d443d17ba88a0ef1f1e59d86367579c0117c64d00a87c
LISTINGS\TO_DATE.INX 📄 view 52 B 1989-05-14 20:24 9119b6fe91deacff0ef5e09dc838cd07106c11759020e6d028c42b9c9d0bc8a9
LISTINGS\TO_DATE.KEY 📄 view 330 B 1989-05-14 17:59 f904864592922f4fbb4387ec5a32c66fe3b5845dc83d3685b32faead7ce840b1
LISTINGS\WEEKLY.HDR 📄 view 3.6 KB 1989-05-14 17:09 1edd05a8f068d881d270aebf1a719fbcf3dbe56a688f58cf39852b103ab8e2af
LISTINGS\WEEKLY.INX 📄 view 152 B 1989-05-14 20:24 9a6fe0e1783d429a5953e8a2ea3bdd1b9be8eb362a0303b83581f30c36b4fe04
LISTINGS\WEEKLY.KEY 📄 view 332 B 1989-05-14 17:58 0cce9a689c77f7927505db7abd849489b679ede304efafdb11798a9432880964
LISTINGS\WEEKLY.DTA 📄 view 504 B 1989-05-14 20:24 be24d6629d8ceb5a4ee63a10552cac5799c212c83f4bcccf7c7c557ad7e72544
LISTINGS\READ.ME 📄 view 6.1 KB 1989-05-14 20:33 03dfaac04853207411c37f13d13832e218f976a8ae5a8635033e6f4ebd978ec5
INTRO\TITLE.CSF 1.6 KB 1989-06-03 15:54 391ceda7cb26bfbc066ff282161343d3a6fc491a6ec4b38f4d78659e92927da7
INTRO\AUG1.CSF 1.6 KB 1989-06-03 16:35 9a3fcb81b97016aa73abc9822cd5e7a27df115da19c5d64f574fb132d0715449
INTRO\AUG2.CSF 1.2 KB 1989-06-03 15:54 8f0896d967aa6480674cacee211739726af02abcab59eb6fbb06bfe5fd59068f
INTRO\SHOWCSF.EXE 8.6 KB 1989-05-01 19:03 7429f059454b01feee6c0db0a75919f32e3093318854dba1f0d0295e54eb444f⚠ DUP
PCPLUS.BAT 📄 view 3.7 KB 1989-06-05 17:29 706531a25fb5a8ab4caad2496511e95d838f1a88af35786bf39230b51e25bff4

▸ Antivirus Scan

☣ THREATS DETECTED
41FILES SCANNED
1INFECTED
0ERRORS
33.86sSCAN TIME
Engine: ClamAV 1.4.4 / DB 27990  ·  via clamdscan
Infected FileSignature / Threat Name
☣ ⚙ [BOOT SECTOR] PCPlus_Issue-35_Aug-1989.imgWin.Trojan.Stoned-14
Infected files: 0
Time: 0.006 sec (0 m 0 s)

⚠ Duplicate Files

SHA-256Occurrences
7429f059454b01feee6c0db0a75919f32e3093318854dba1f0d0295e54eb444fPCPlus_Issue-35_Aug-1989.img::INTRO/SHOWCSF.EXE
PCPlus_Issue-36_Sep_1989-FluxEngine-360kB.img::INTRO/SHOWCSF.EXE

▸ Archive.org

This disk image has not yet been submitted to the Internet Archive.
Once uploaded, create PCPlus_Issue-35_Aug-1989.link in the archive directory containing the item identifier.

▸ Live Access via mTCP NetDrive

All variants of this disk are available for immediate live access on the public X86.WORLD mTCP NetDrive service. Connect commands for each variant are shown in the Available Image Variants section below.

Requires mTCP and a configured packet driver. Replace D: with any free drive letter. Type NETDRIVE DISCONNECT D: to unmount.

▸ Available Image Variants

This disk is available in 3 variants. The Original is the unmodified flux capture exactly as read from physical media. Other variants have been processed for specific purposes — see each tab for details.

Original Image
☣ 1 Threat(s)
☣ This image contains known malware.
Detected: Win.Trojan.Stoned-14 (boot sector)
Only connect to this image if you understand the risks and are working in an isolated environment. We strongly recommend using the Clean (or Patched if it exists) variant unless you are specifically studying the virus.
FilenamePCPlus_Issue-35_Aug-1989.img
FilesystemFAT12 (assumed — non-standard BPB)
Files41
SHA-256ef0e6c2cceb3e5d8b3049f4b15f8b0c6cd36d74ca099db19a3a9783f6962d098
DOS CONNECT COMMAND
⚠ This image is known to be infected with a virus or other malware.
Only connect to it if you are working in a fully isolated DOS environment and understand the risks. This virus can spread to your hard drive.
