Disk Archive — PCPlus Issue 11 Aug 1987 (PCPlus_Issue-11

▸ Disk Identity

Image Size	360 KB
Filesystem	FAT12
Floppy Type	360KB
Form Factor	5.25"
Format Notes	IBM DOS 2.0 DS/DD
Cylinders	40
Heads	2
Sectors/Track	9
Total Sectors	720

$Physical disk scan — PCPlus_Issue-11_Aug-1987$

Physical media scan

▸ Contents Summary

23FILES

1DIRECTORIES

335.2 KBTOTAL DATA

Used capacity	93.1%
Slack space	6.9% (24.8 KB)
Date range	1987-03-01 → 1987-07-16
Largest file	MWPDEMO.COM (58 KB)
Cross-disk dupes	0 file(s)
AV status	✓ CLEAN

Disk SHA-256:1b9c4daa2520f49b9550f9e555ab9edf641c32abd4c4cb3722b43b3f6fb66c57

▸ Archivist's Notes

DEVICE: GreaseWeazle 4.1
   DRIVE: TEAC FD-55GFR

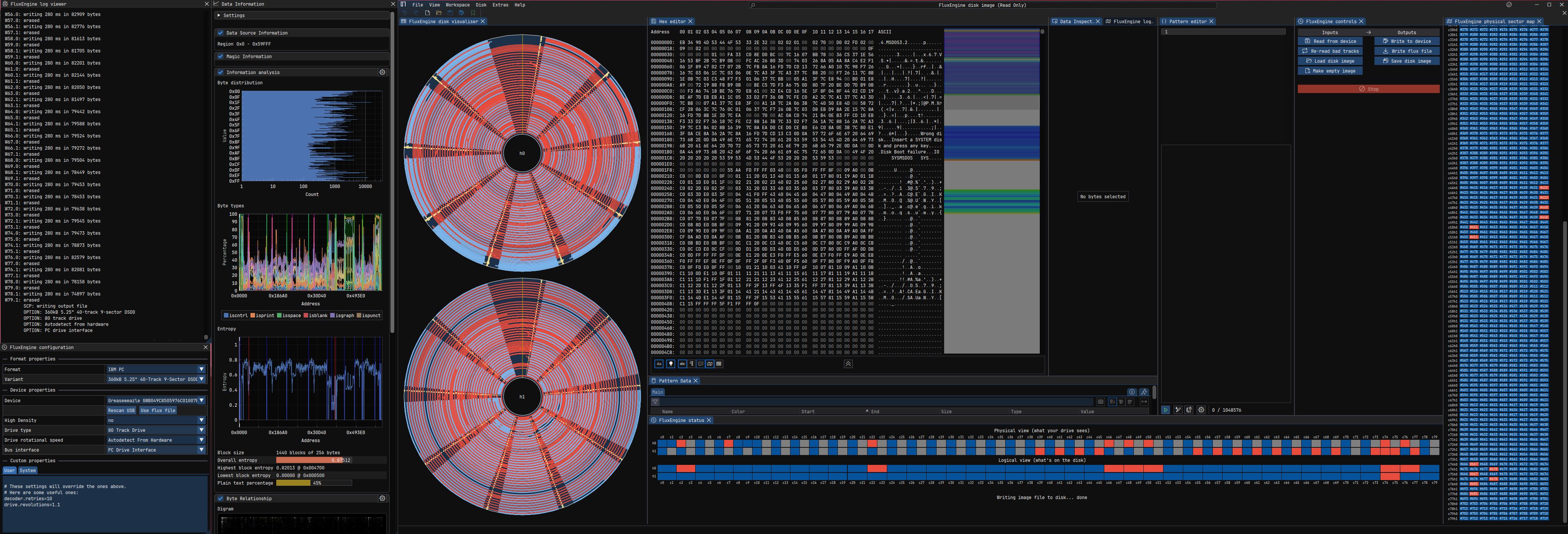

   SUITE: FluxEngine (decoder.retries=various, drive.revolutions=various)
ARCHIVER: Lee Smallbone
ARCHIVED: 2026-07-06 11:00 (GMT/UTC)

NOTES:
Disk was quite heavily contaminated with mould. Full-clean in the 3D disk cleaning rig with medical swabs and rubbing alcohol.

Disk drive heads thoroughly cleaned (3x 'gw clean' cycles with a isopropyl alcohol-soaked cleaning disk), which had to be repeated throughout the recovery due to oxide shedding.

Majority of sectors did not read on first pass.

This has been a very challenging recovery, with approximately 20 passes required with cleanings inbetween, and it is not a complete recovery on this disk unfortunately. However approximately 95% of the disk was recovered in the end.

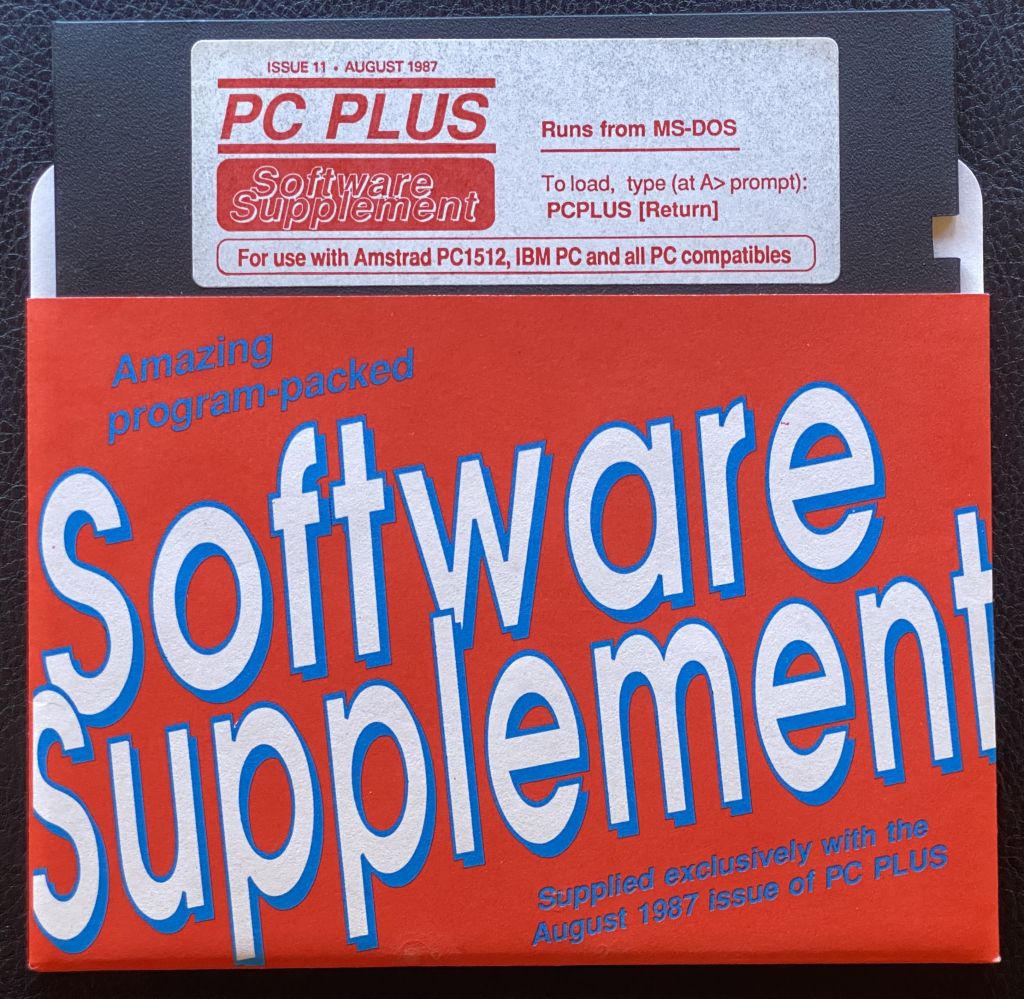

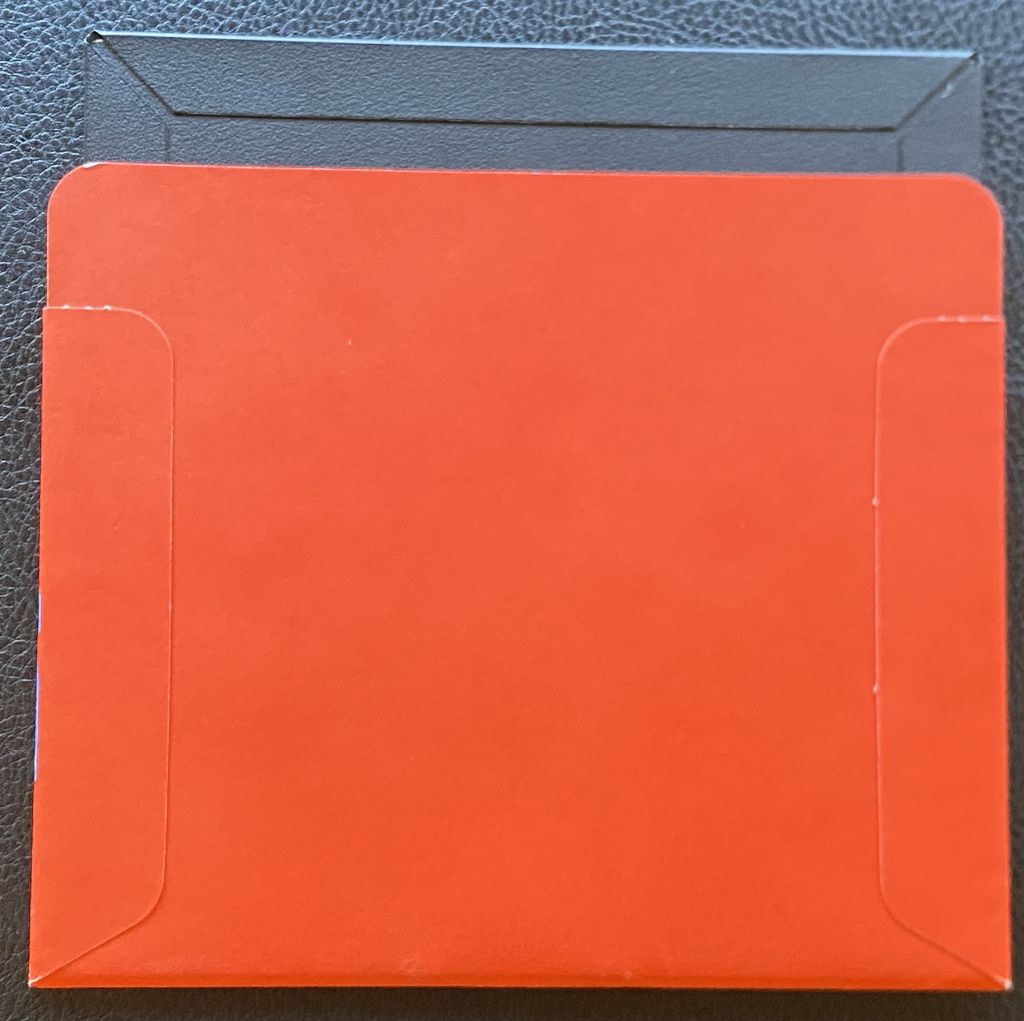

Disk returned to original sleeve for archiving.

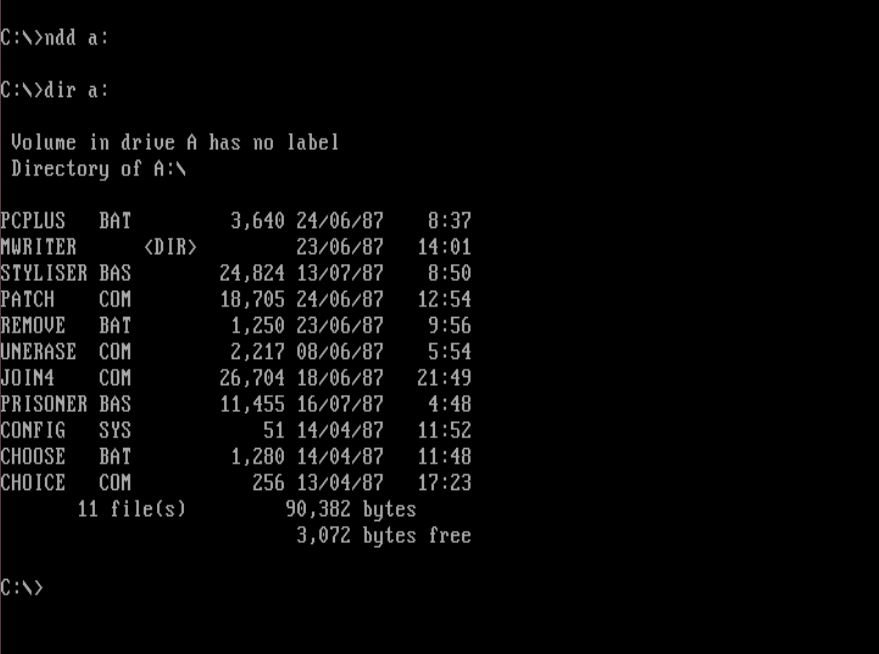

▸ Directory Tree

┌─ PCPLUS_ISSUE-11_AUG-1987.IMG
│
├── PCPLUS.BAT                 3.6 KB  1987-06-24  sha256:9a0b89232328437c72cf98b49257dfa0c3e78431ed1a553de3c8ba6588097d4d
├── MWRITER\
│   ├── MWPDEMO.COM                 58 KB  1987-06-16  sha256:83bc61d91e45f54e60cf4d536e2b241cacda2b7d72a1cd70dacb651508c0f8d2
│   ├── MWDOVL2.COM               49.3 KB  1987-06-16  sha256:0bbe9680d3412598fde2cd7d64acdb45b7ff54b6db12a4863c5e3d076c5084e4
│   ├── MWDOVL3.COM               54.2 KB  1987-06-16  sha256:6d583a0607a3f4d931a0d2cfc35a09fa246aa5668b7ca82c50c2455e8a03466f
│   ├── MWDOVL1.COM               45.4 KB  1987-06-18  sha256:0a5e6a00318a8a377bfd3519b8d60d88fc388be6db78cb9a046cef8375d4118b
│   ├── ASCII.DAT                  3.9 KB  1987-03-02  sha256:af68cf984945849c00060a993a645a8bcd2f8d940d5ca9b45454de2231fcc814
│   ├── DEMO.BAT                     26 B  1987-06-23  sha256:449afd51006c1226aade9665912862b03234381396a861ac09700164f94830d9
│   ├── DEMO.DOC                   5.9 KB  1987-06-15  sha256:8d73fdfb61c43423e3bf8b62b22ad25ece9b5d6da2f74608a397d84820807902
│   ├── MW.SCN                       4 KB  1987-06-11  sha256:cf95796a5bda4a8bd691dd975606f15db300895c98f2fc4b4594f9eaa2471410
│   ├── MW.SMN                       4 KB  1987-06-11  sha256:0dacbf58b975ef3e099dd63e50618fa1adc7c0e064aae41a15dcfa6661b30d4f
│   ├── MW.CFG                       53 B  1987-06-08  sha256:a53ac328d4551f7fcbb74dde8588b0fd2f67cd06747d9c292679d3ddb190c557
│   ├── ERRMSG.DAT                 1.7 KB  1987-05-26  sha256:32b6cfa1efce125264b02005b40d577f1a2367ceb746470bded4aa7398ad22c9
│   ├── USER.DIC                   1.3 KB  1987-06-12  sha256:081e54ef5b6525cde87e9eb3c178fc37ec54accf8fbc57a4dc272316813b6534
│   └── RAM.DIC                   19.1 KB  1987-03-01  sha256:fae83cd3e0021e4ab999ba342e8d32fcaa458152412155160ef6b42ff9a41232
├── STYLISER.BAS              24.2 KB  1987-07-13  sha256:9086953cf4c2c5a70410666f2c9b11e79c2c3b41b67c78637e326c6a38a75bdb
├── PATCH.COM                 18.3 KB  1987-06-24  sha256:2f52aa703b6ca4932078c4c2d5b0df36c614cbeb8f063463d750e977e73e063b
├── REMOVE.BAT                 1.2 KB  1987-06-23  sha256:ed3baf8d7376abf2c18f2e6f38c5b37463e550536154077301bff9db323d13f8
├── UNERASE.COM                2.2 KB  1987-06-08  sha256:504b8d37204c46dce55ad959a67add7aeb9ba696859659c7f1f0ae9c71f5e3c8
├── JOIN4.COM                 26.1 KB  1987-06-18  sha256:ce365d92a394e1e09ec0cc581e9358e68be9fd806afdf68e383e62a57d6ce63f
├── PRISONER.BAS              11.2 KB  1987-07-16  sha256:e4c2f4a3913cf6bd83eb7375969ef5e0c672a7ec5d6091f14a34e9fee044f3a6
├── CONFIG.SYS                   51 B  1987-04-14  sha256:f6a937adf3e16cd353d2551caf36f4efc46247f13f953de6fd9593d27a09b2dd
├── CHOOSE.BAT                 1.3 KB  1987-04-14  sha256:d33f498449b25187c3033d3c036800943cab9b0998f8e8291de5c941816ce0cd
└── CHOICE.COM                  256 B  1987-04-13  sha256:28e2644ca75a706e545e27a840f5521799c5ede980218b7ace91c6658c4d3a32
│
└─ END PCPLUS_ISSUE-11_AUG-1987.IMG

▸ File Manifest

Path	Size	Modified	SHA-256
PCPLUS.BAT 📄 view	3.6 KB	1987-06-24 08:37	9a0b89232328437c72cf98b49257dfa0c3e78431ed1a553de3c8ba6588097d4d
MWRITER\MWPDEMO.COM	58 KB	1987-06-16 10:38	83bc61d91e45f54e60cf4d536e2b241cacda2b7d72a1cd70dacb651508c0f8d2
MWRITER\MWDOVL2.COM	49.3 KB	1987-06-16 10:48	0bbe9680d3412598fde2cd7d64acdb45b7ff54b6db12a4863c5e3d076c5084e4
MWRITER\MWDOVL3.COM	54.2 KB	1987-06-16 10:50	6d583a0607a3f4d931a0d2cfc35a09fa246aa5668b7ca82c50c2455e8a03466f
MWRITER\MWDOVL1.COM	45.4 KB	1987-06-18 13:50	0a5e6a00318a8a377bfd3519b8d60d88fc388be6db78cb9a046cef8375d4118b
MWRITER\ASCII.DAT 📄 view	3.9 KB	1987-03-02 16:53	af68cf984945849c00060a993a645a8bcd2f8d940d5ca9b45454de2231fcc814
MWRITER\DEMO.BAT 📄 view	26 B	1987-06-23 13:05	449afd51006c1226aade9665912862b03234381396a861ac09700164f94830d9
MWRITER\DEMO.DOC 📄 view	5.9 KB	1987-06-15 08:32	8d73fdfb61c43423e3bf8b62b22ad25ece9b5d6da2f74608a397d84820807902
MWRITER\MW.SCN	4 KB	1987-06-11 10:33	cf95796a5bda4a8bd691dd975606f15db300895c98f2fc4b4594f9eaa2471410
MWRITER\MW.SMN	4 KB	1987-06-11 10:34	0dacbf58b975ef3e099dd63e50618fa1adc7c0e064aae41a15dcfa6661b30d4f
MWRITER\MW.CFG 📄 view	53 B	1987-06-08 07:40	a53ac328d4551f7fcbb74dde8588b0fd2f67cd06747d9c292679d3ddb190c557
MWRITER\ERRMSG.DAT 📄 view	1.7 KB	1987-05-26 10:09	32b6cfa1efce125264b02005b40d577f1a2367ceb746470bded4aa7398ad22c9
MWRITER\USER.DIC 📄 view	1.3 KB	1987-06-12 11:19	081e54ef5b6525cde87e9eb3c178fc37ec54accf8fbc57a4dc272316813b6534
MWRITER\RAM.DIC 📄 view	19.1 KB	1987-03-01 21:25	fae83cd3e0021e4ab999ba342e8d32fcaa458152412155160ef6b42ff9a41232
STYLISER.BAS 📄 view	24.2 KB	1987-07-13 08:50	9086953cf4c2c5a70410666f2c9b11e79c2c3b41b67c78637e326c6a38a75bdb
PATCH.COM	18.3 KB	1987-06-24 12:54	2f52aa703b6ca4932078c4c2d5b0df36c614cbeb8f063463d750e977e73e063b
REMOVE.BAT 📄 view	1.2 KB	1987-06-23 09:56	ed3baf8d7376abf2c18f2e6f38c5b37463e550536154077301bff9db323d13f8
UNERASE.COM	2.2 KB	1987-06-08 05:54	504b8d37204c46dce55ad959a67add7aeb9ba696859659c7f1f0ae9c71f5e3c8
JOIN4.COM	26.1 KB	1987-06-18 21:49	ce365d92a394e1e09ec0cc581e9358e68be9fd806afdf68e383e62a57d6ce63f
PRISONER.BAS 📄 view	11.2 KB	1987-07-16 04:48	e4c2f4a3913cf6bd83eb7375969ef5e0c672a7ec5d6091f14a34e9fee044f3a6
CONFIG.SYS 📄 view	51 B	1987-04-14 11:52	f6a937adf3e16cd353d2551caf36f4efc46247f13f953de6fd9593d27a09b2dd
CHOOSE.BAT 📄 view	1.3 KB	1987-04-14 11:48	d33f498449b25187c3033d3c036800943cab9b0998f8e8291de5c941816ce0cd
CHOICE.COM	256 B	1987-04-13 17:23	28e2644ca75a706e545e27a840f5521799c5ede980218b7ace91c6658c4d3a32

▸ Antivirus Scan

✓ NO THREATS DETECTED

23FILES SCANNED

0INFECTED

0ERRORS

31.2sSCAN TIME

Engine: ClamAV 1.4.4 / DB 27990 · via clamdscan

Infected files: 0
Time: 0.008 sec (0 m 0 s)

▸ Archive.org

This disk image has not yet been submitted to the Internet Archive.
Once uploaded, create PCPlus_Issue-11_Aug-1987.link in the archive directory containing the item identifier.

▸ Live Access via mTCP NetDrive

This disk image is available for immediate live access on the public X86.WORLD mTCP NetDrive service. Mount it directly as a drive letter on any DOS machine with a network connection — no download required.

DOS COMMAND

NETDRIVE CONNECT disks.x86.world:2002 PCPlus_Issue-11_Aug-1987.img D:

Requires mTCP and a configured packet driver. Replace D: with any free drive letter. The connection is session-scoped (writeable, but only for your connected session).
Type NETDRIVE DISCONNECT D: to unmount.
